Xbox Console HDMI Port Replacement Socket

Xbox HDMI Port Replacement Socket for Console Repair

Replace a damaged, loose, or non-working HDMI connector on your Xbox gaming console with this high-quality replacement port interface. Specifically, technicians use this component for console repair and refurbishment when the original HDMI socket snaps, bends, or detaches from the motherboard.

Additionally, this replacement connector ensures high-quality video and audio transmission. Consequently, it restores full display functionality and provides a reliable connection to your TV or monitor. However, because different Xbox console generations use distinct HDMI port footprints, you should select the exact model version for your console. Therefore, always compare the replacement connector directly with your original HDMI port before soldering.

Suitable for Repairing

• No display output or persistent “No Signal” message on TV/monitor
• Distorted, flickering, fuzzy, or low-resolution video output
• Missing or intermittent audio transmission through the HDMI connection
• Loose, wobbly, or unstable HDMI cable connection
• Bent, cracked, or physically crushed HDMI port housing
• Broken, burnt, or missing internal connector pins
• Video signal dropping out whenever the HDMI cable moves

Please note: A faulty HDMI encoder chip, damaged filter caps, or blown display diodes can also cause these display issues. Therefore, replacing the physical port only resolves the problem if the socket itself has structural damage.

Key Features

• Replacement HDMI port socket connector
• Ensures high-quality video and audio transmission for an optimal gaming experience
• Restores a stable, reliable HDMI display connection
• Precision-engineered mounting legs and solder pins for accurate board alignment
• Model-specific compatibility across Xbox One, One S, One X, Series S, and Series X
• New replacement component
• Professional microsoldering installation required

Product Details

• Product: HDMI Port Socket Interface Connector
• Compatible Devices: Xbox One / Xbox One S / Xbox One X / Xbox Series S / Xbox Series X
• Interface Standard: HDMI
• Condition: New
• Installation Method: Microsoldering
• Package Quantity: 1 port

Package Includes

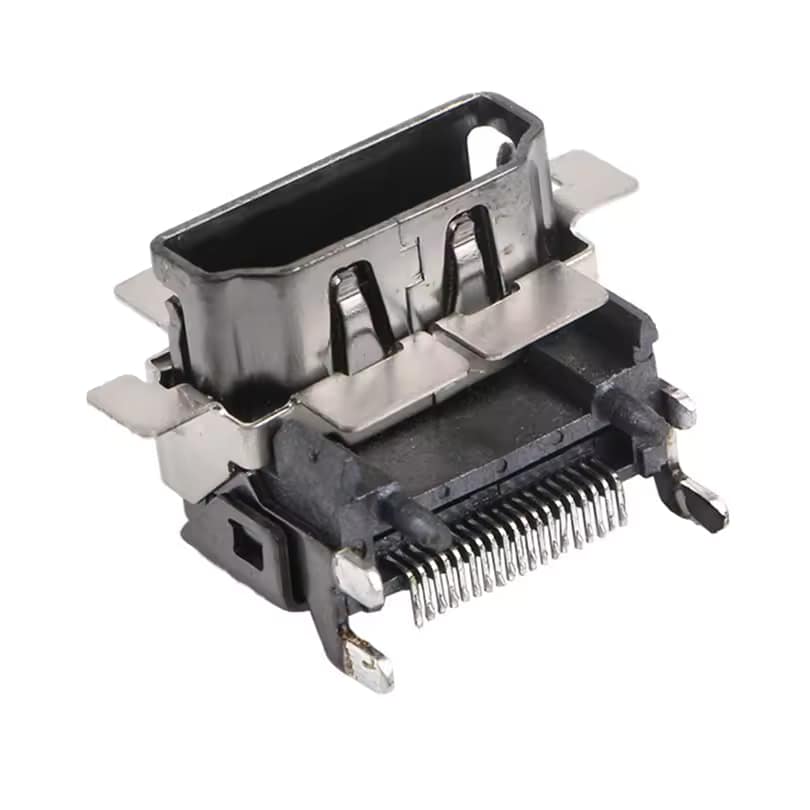

• 1 × Xbox Console HDMI Port Replacement Socket Connector

How to Confirm Compatibility

HDMI ports vary significantly across different Xbox console revisions in their height, rear anchor positions, and solder pad footprints. For instance, before ordering, you should compare your original port against the product photos and check:

• Shape and thickness of the outer metal shell
• Position, height, and width of the mounting support legs
• Rear grounding tabs and alignment pins
• Number, spacing, and arrangement of the 19 solder pins
• Motherboard footprint and seating depth

Installing an incorrect HDMI port variant can prevent proper seating on the motherboard. Furthermore, it can cause electrical shorts. For that reason, always ensure you select the specific model designed for your exact console motherboard revision.

Installation Information

First, desolder the old connector from the motherboard using hot-air rework tools. Next, clean and prep the solder pads before carefully aligning the new port. Finally, securely solder both the anchor legs and signal pins into place.

Professional microsoldering equipment and technical experience are required. Incorrect thermal management or poor soldering techniques can permanently lift board pads, bridge small pins, or damage nearby surface-mount components.

FAQs

Q: Is this HDMI port the same for all Xbox consoles?
A: No. The Xbox One Original, Xbox One S, Xbox One X, Xbox Series S, and Xbox Series X each require their own distinct HDMI port footprint. Therefore, make sure to choose the correct variant for your specific console.

Q: Will replacing the HDMI port fix a “No Signal” black screen?
A: Yes, it will resolve the issue if bent pins or broken solder joints cause the fault. However, if the physical port is intact, the issue might stem from the HDMI IC retimer chip instead.

Q: Does this port support full video and audio transmission?
A: Absolutely. It passes all standard HDMI video signals and multi-channel audio protocols supported by your console.

Q: Is installation plug-and-play?
A: No. Replacing this component requires disassembling the console and performing precision microsoldering onto the main motherboard.

Q: Are installation tools or solder included?
A: No. The package contains one replacement HDMI port socket only.

Important Compatibility Notice

• Compare the replacement connector with your original part before ordering.
• Check the metal shell, mounting tabs, anchor legs, and pin layout carefully.
• Select the correct console model option before placing your order.
• This listing includes the HDMI replacement port socket only.
• Console, tools, solder, flux, and installation instructions are not included.
• Professional microsoldering installation is strongly recommended.
• Incorrect installation or excessive heat may permanently damage your console motherboard.
