PS3 HDMI Port Replacement Socket – 2000/2500 & 3000/4000

PS3 HDMI Port Replacement Socket

Replace a physically damaged HDMI socket on a compatible PlayStation 3 motherboard. This unbranded repair component provides the connection point for an HDMI cable carrying the console’s digital picture and sound to a TV or monitor. Choose the port layout that matches your console and original connector.

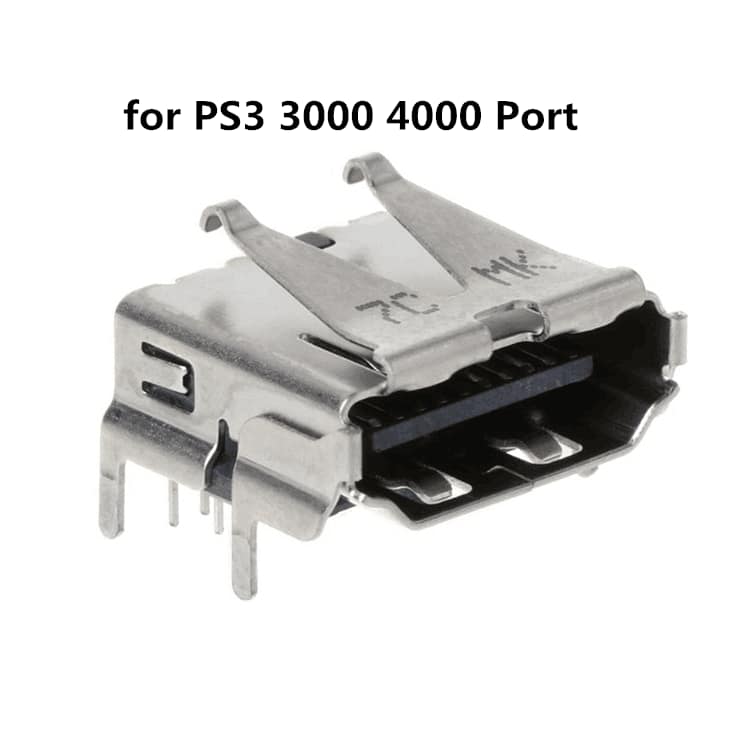

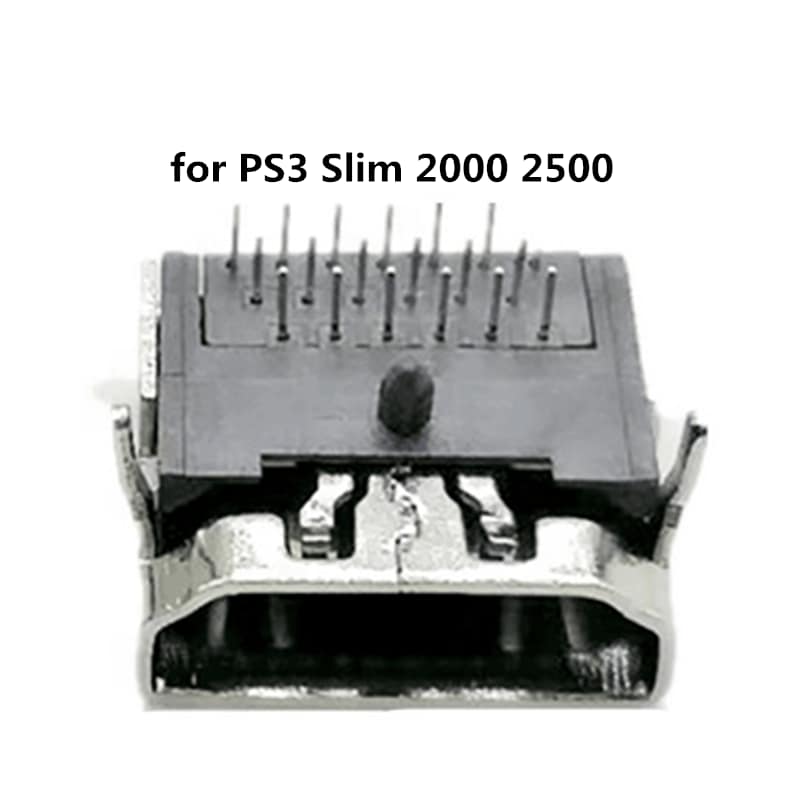

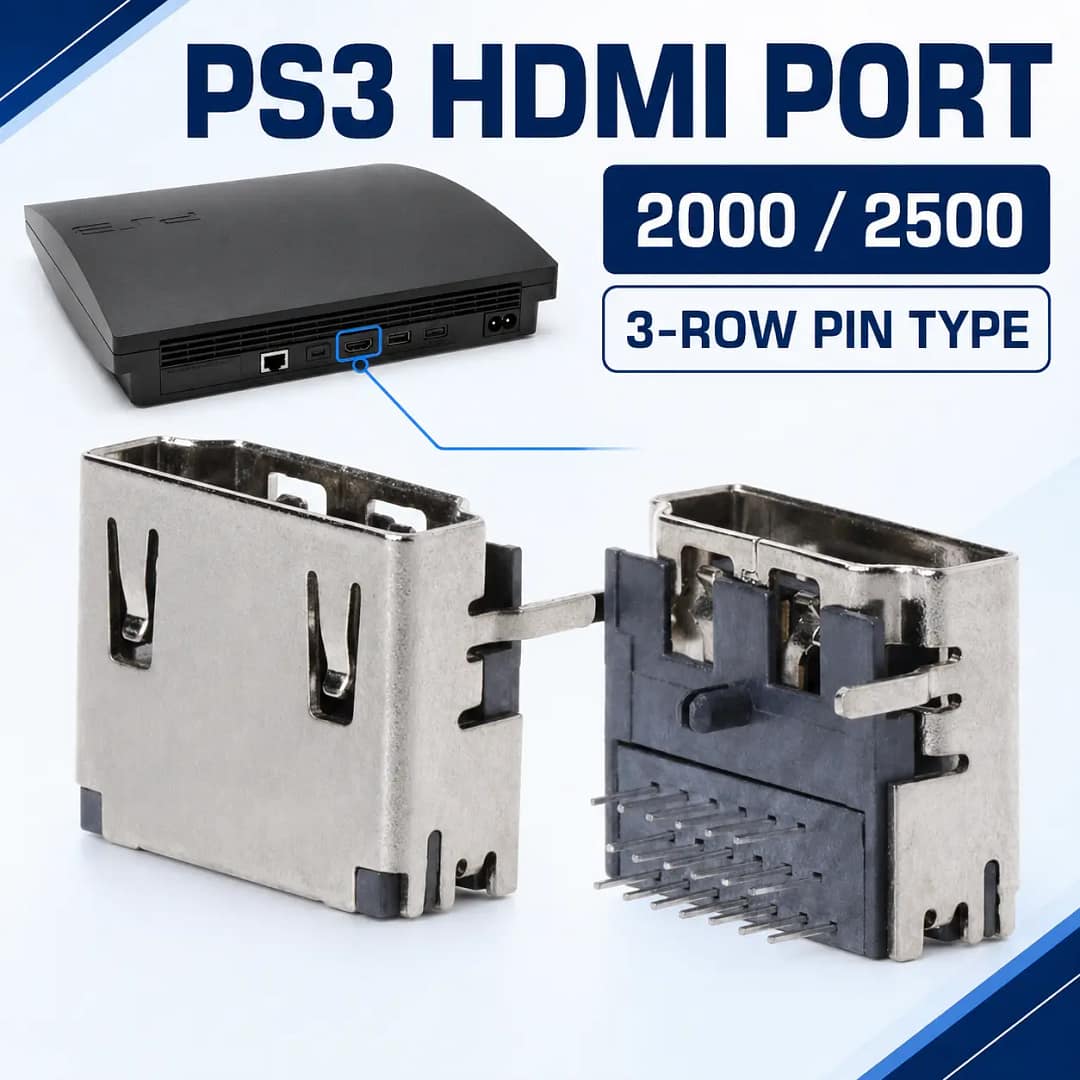

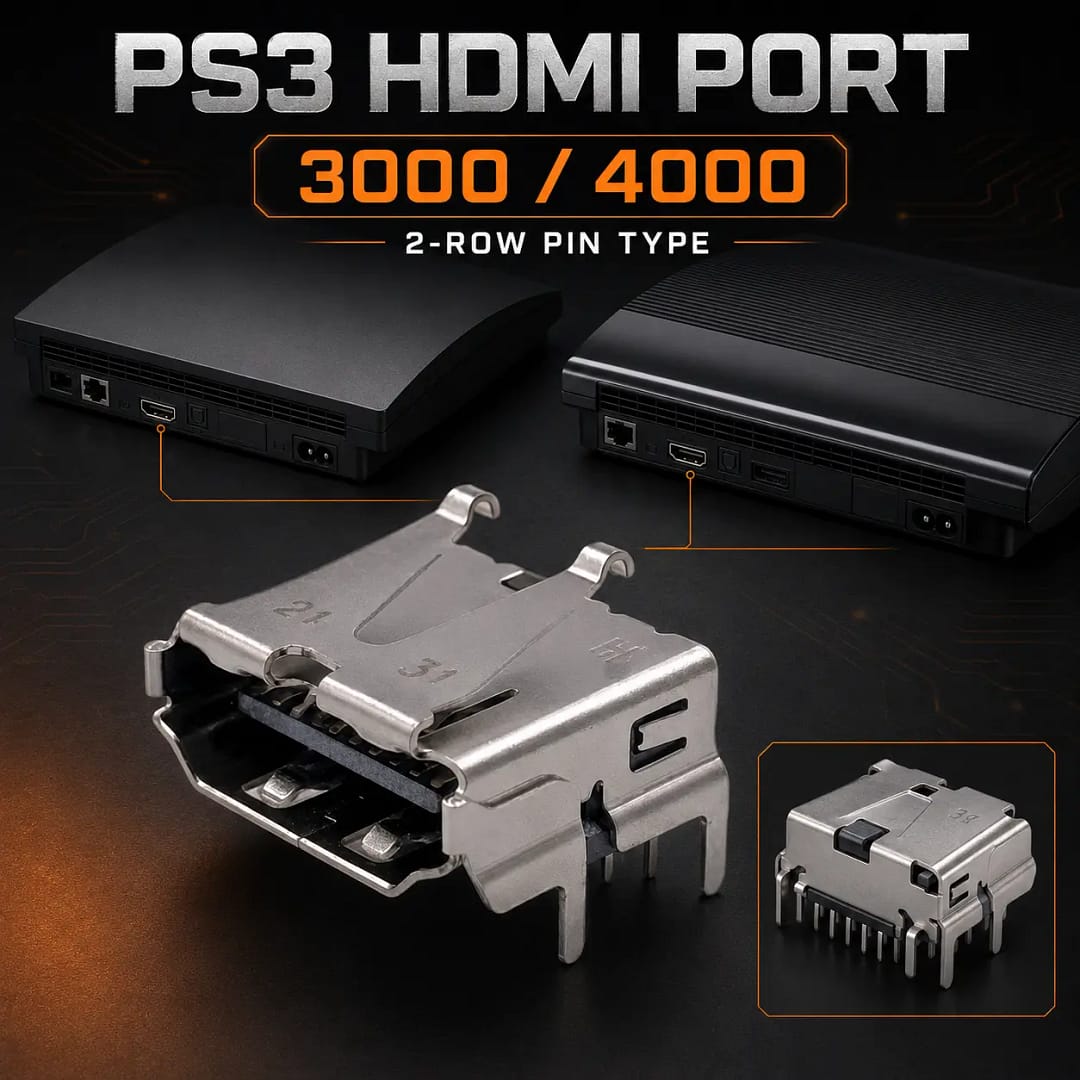

Choose your console series

Compatibility matters: these are two different port options, not a universal socket. Read the CECH model label on your console and have your technician confirm the motherboard connector footprint. Model-family names alone do not establish a fit for every board revision. Compatibility with PS3 Fat models or other unlisted revisions is not established.

2K, 2.5K, 3K and 4K are model-series shorthand. They do not mean this part upgrades a PS3 to 4K output or adds new display features.

Typical repair uses

• Damaged connector: replace a crushed socket, broken internal tongue or bent contacts after the HDMI cable has been pulled or knocked.
• Loose connection: a technician may recommend replacement when a worn socket no longer holds the cable securely and inspection confirms damage.
• Intermittent picture or sound: useful when testing identifies the port or its solder connections as the cause of dropouts.
• Workshop repairs: suitable as a spare component for technicians refurbishing compatible PS3 consoles.

Check the fault before replacing the port

A TV showing “No Signal” does not by itself prove the socket is faulty. First check a known-working HDMI cable, the selected TV input, another display and the PS3 video-output settings. Motherboard circuitry or damaged tracks can also require repair. This socket alone cannot resolve every display fault.

Installation and package contents

This is a motherboard soldering component. Installation involves console disassembly, removal of the original connector, careful soldering and inspection of the signal contacts and mounting joints. Use an experienced console-repair technician with suitable microsoldering equipment; it is not an external plug-in adapter.

Supplied: one HDMI replacement socket in the selected series. Console, HDMI cable, tools and installation service are not included. This is an unbranded replacement part, not advertised as a Sony-manufactured original. It is not a controller USB charging socket.

Model identification and display help

See PlayStation model-label guidance and the official PS3 video-output settings guide for help identifying the console and checking its display setup.
