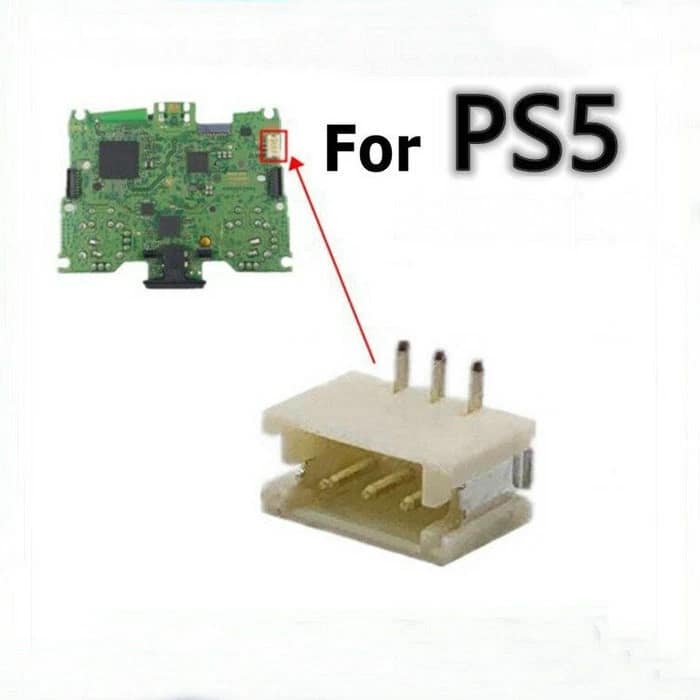

PS5 DualSense Battery Connector Socket

Restore the internal battery connection of a compatible PS5 DualSense controller with this replacement battery connector socket. This small motherboard component replaces the socket where the controller battery cable connects to the main circuit board.

It is intended for controllers with a confirmed BDM-010 motherboard revision. If the original connector has become loose, cracked, burnt, corroded, or detached from the motherboard, replacing it may help restore the battery connection.

What Problems Can It Help Repair?

This replacement socket may be useful when a compatible DualSense controller:

• Does not power on because the battery is not making contact
• Does not charge because the battery connector is damaged
• Has a loose or broken battery socket
• Has bent, burnt, corroded, or missing connector pins
• Has a connector that has separated from the motherboard

Please note: these symptoms can also be caused by a faulty battery, USB charging board, charging cable, motherboard circuit, or another internal component. Replacing this socket will only solve the problem when the battery connector itself is faulty.

Key Features

• Replacement battery connector socket for PS5 DualSense controller
• Designed for BDM-010 motherboards
• Replaces a damaged or broken motherboard battery port
• Suitable for controller repair and refurbishment
• Compact internal replacement component
• Requires soldering installation

Compatibility

• Confirmed motherboard revision: BDM-010
• Controller family: Sony PlayStation 5 DualSense
• Not confirmed for: BDM-020, BDM-030, BDM-040, BDM-050, BDM-060, or DualSense Edge

DualSense controllers may look identical externally while using different motherboard revisions and internal components. Open the controller and check the board code before ordering.

Specifications

• Product Type: Battery Connector Socket Repair Part
• Compatibility: PS5 DualSense Controller
• Motherboard Version: BDM-010
• Function: Connects the controller battery cable to the motherboard
• Installation: Internal soldering
• Reference: 3C47F01
• Condition: New replacement component

Package Includes

• 1 × PS5 DualSense Battery Connector Socket

Installation Information

This component must be soldered directly to the controller motherboard. Installation requires opening the controller, removing the damaged socket, cleaning the solder pads, aligning the replacement connector, and soldering it securely.

Professional repair experience and micro-soldering tools are recommended. Improper installation may damage motherboard pads, traces, nearby components, or the replacement socket.

FAQs

Q: Is this compatible with every PS5 DualSense controller?
A: No. This listing should be treated as compatible with BDM-010 motherboards only unless another revision has been physically verified.

Q: Will it fit BDM-020 or BDM-030?
A: Compatibility with those versions is not confirmed. Compare the original connector carefully or confirm with a technician or supplier before purchase.

Q: Can it fix a controller that does not turn on?
A: It may help when the problem is caused by a damaged battery connector. It will not repair faults caused by the battery, charging board, motherboard, or other components.

Q: Can it fix a controller that does not charge?
A: Only when the charging problem is caused by poor contact or physical damage at the battery socket.

Q: Is installation plug and play?
A: No. The connector requires motherboard soldering.

Q: Are installation instructions included?
A: No. Installation instructions and repair tools are not included.

Important Notes

• Check the motherboard revision before ordering.
• This version is listed for BDM-010.
• This product is the battery connector socket only.
• Controller, battery, motherboard, tools, and other parts are not included.
• Professional soldering installation is strongly recommended.
• Replacing this socket does not guarantee repair if another component is faulty.
